Περιγραφή

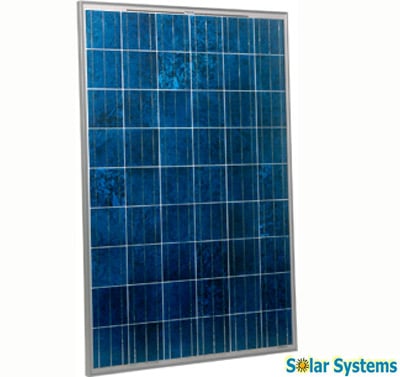

Πολυκρυσταλλικού πυριτίου 270 watt ( wp ). Ευρωπαϊκής πιστοποίησης. Υπάρχει εγγύηση ισχύος μέσω Ευρωπαικής εταιρείας ασφαλειών.
| Electrical Characteristics |
| Open – Circuit Voltage (Voc) |
44.5V |
| Optimum Operating Voltage (Vmp) |
35.0V |
| Short – Circuit Current (Isc) |
8.20A
|
| Optimum Operating Current (Imp) |
7.71A
|
| Maximum Power at STC (Pmax) |
270Wp |
| Operating Temperature |
-40ΒΊC to +85ΒΊC |
| Maximum System Voltage |
1000V DC |
| Maximum Series Fuse Rating |
20 AMPS |
| Power Tolerance |
Β±3 % |
| STC: lrradiance 1000W/m2, Module temperature 25ΒΊC, AM=1.5 |
| Temperature Coefficients |
| Nominal Operating Cell Temperature (NOCT) |
45ΒΊCΒ±2ΒΊC |
| Temperature Coefficiency of Pmax |
-0.47 %/ΒΊC |
| Temperature Coefficiency of Voc |
-0.34 %/ΒΊC |
| Temperature Coefficiency of Isc |
0.045 %/ΒΊC |
|
| Mechanical Characteristics |
| Solar Cell |
Poly-crystalline 156Γ—156mm (6 inch) |
| No. of Cells |
72 (6Γ—12) |
| Dimensions |
1956Γ—992Γ—50mm (77.0Γ—39.1Γ—2.0 inch) |
| Weight |
27 kg (59.5 lbs.) |
| Front Glass |
4mm(0.16 inch) tempered glass |
| Frame |
Anodized aluminium alloy |
| Junction Box |
IP65 rated |
| Output Cables |
H+S RADOXΒ® SMART cable 4.0mm2 (0.006inch2 ), symmetrical lengths (-) 1000mm (39.4inch) and (+) 1000mm (39.4inch), RADOXΒ® SOLAR integrated twist locking connectors |
| Packing |
21 Panels per Καλάθιon |
| Size of Καλάθιon |
|
| Loading Capacity(20 ft Container) |
|
| Loading Capacity(40 ft Container) |
24 Καλάθιons |
|
Ελάχιστη παραγγελία 2 τεμάχια.
τιμή χωρίς ΦΠΑ
