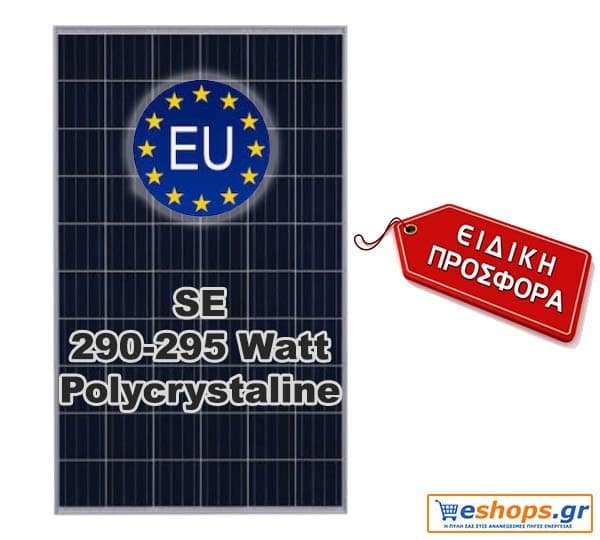

SE 290 watt – 295 watt photovoltaic panel European
New high-efficiency photovoltaic panel with maximum power output that currently amounts to 290 – 295 Watts.
Suitable for autonomous photovoltaic systems or interconnected photovoltaic systems net metering – PV parks
Thanks to a unique combination of components, the improved SE 290-295 WATT panel can generate more electricity from the same surface.
In order to improve its performance, the anti-reflective glass, the EVA membrane and the special connectors of the cells are included. Very good thermal coefficient
photovoltaic panels in series with excellent efficiencies of 17.8% calculated for the entire surface of the panel.
Technical data SE 290 watt – 295 watt photovoltaic panel European
Maximum Power (Pmax) 290-295 Wp
Maximum Power Voltage (Vmp): 31.9V
Maximum Power Current (Imp): 9.58A
Test Condition (STC): 1000W/m, AM1.5, 250C
Tolerance: 0/+5%
Open Circuit Voltage (Voc): 38.60V
Short Circuit Current (Isc):9.12
Maximum System Voltage: 1000VDC
Maximum Fuse Rating: 15A
Operating Temperate: -40,0C to +85,0C
Wind Resistance: 2400Pa
Weight: 20,5 kg
Dimension: 1640mm x 992mm x 35mm
SE 290 watt – 295 watt photovoltaic panel European Polycrystalline silicon high efficiency panel.
It has busbars technology ensuring lower resistance and high conductivity in the series.
Made of Anti-Reflex glass it better absorbs sunlight and thus has even greater efficiency.
With a unique frame design, it fully protects from moisture, rain and weather conditions for the entire duration of use.
Solar Energy SE 290 watt – 295 watt power plus photovoltaic panels are made with thermal power tolerance and produce up to 5% more power than their nominal.
They ensure very good behavior in high temperatures and temperate climates such as the Mediterranean.
Price without VAT.
